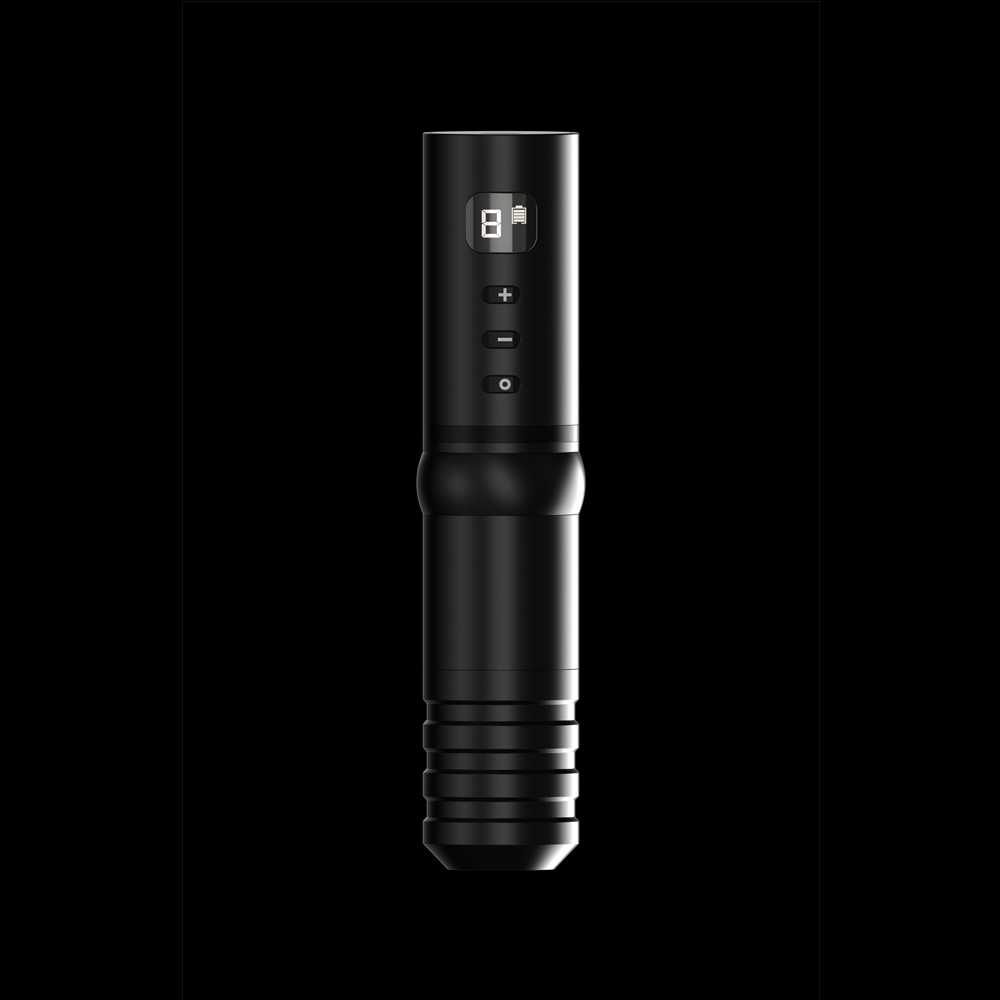

Wireless Battery Tattoo Pen machine 1800mAh LED Digital Display
***RCA connection
***Working voltage ：8-10v
***Speed：10v12000 rpm
***Motor：mabuchi flat motor

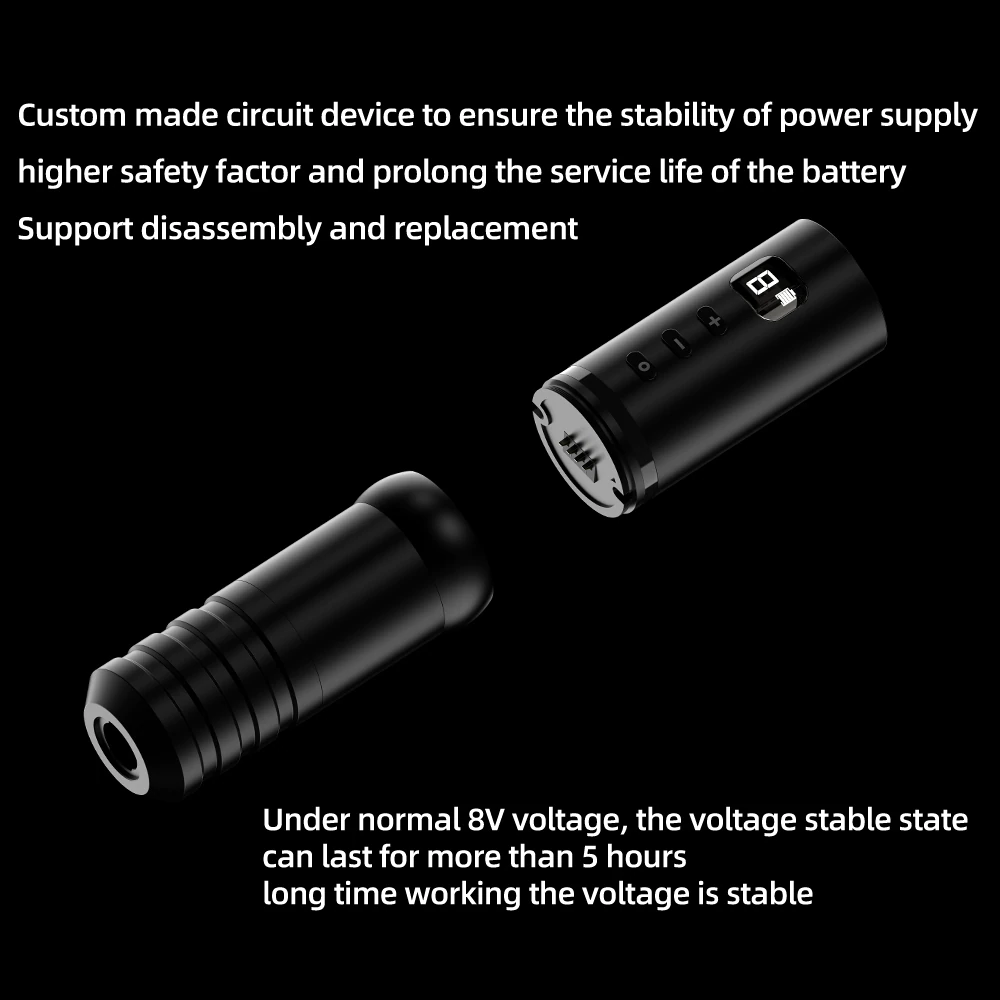

***Detachable.Support change battery part
***Stroke depth： 4 mm
***Fit all types cartridge needles
***Direct derive system make tattoo machine.get stronger power.
***better for lines and shadow
Product parameters:
1. Material: aluminum alloy + acrylic, laser engraving;
2. Charging time: fast charging, 1.5-2 hours can be fully charged;

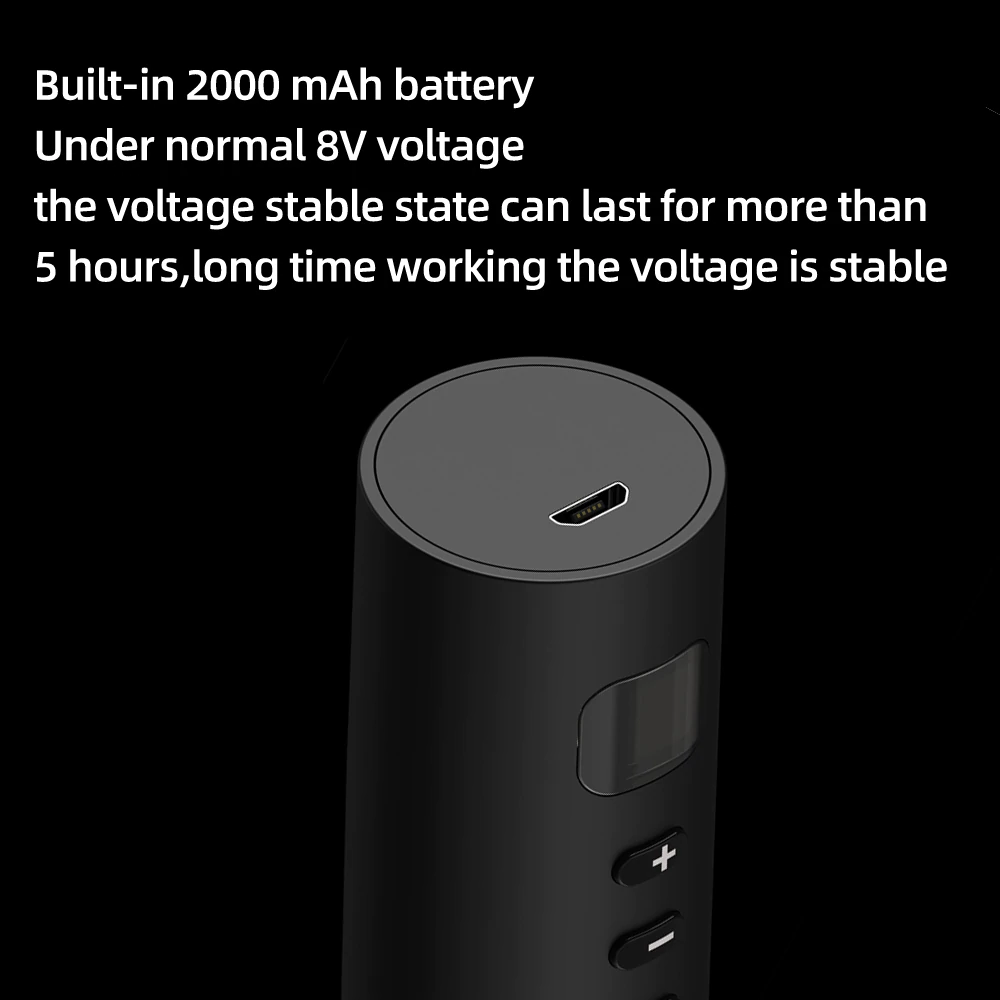

3.Using time: Under normal 8V voltage, the voltage stable state can last for more than 5 hours,long time working the voltage is stable;

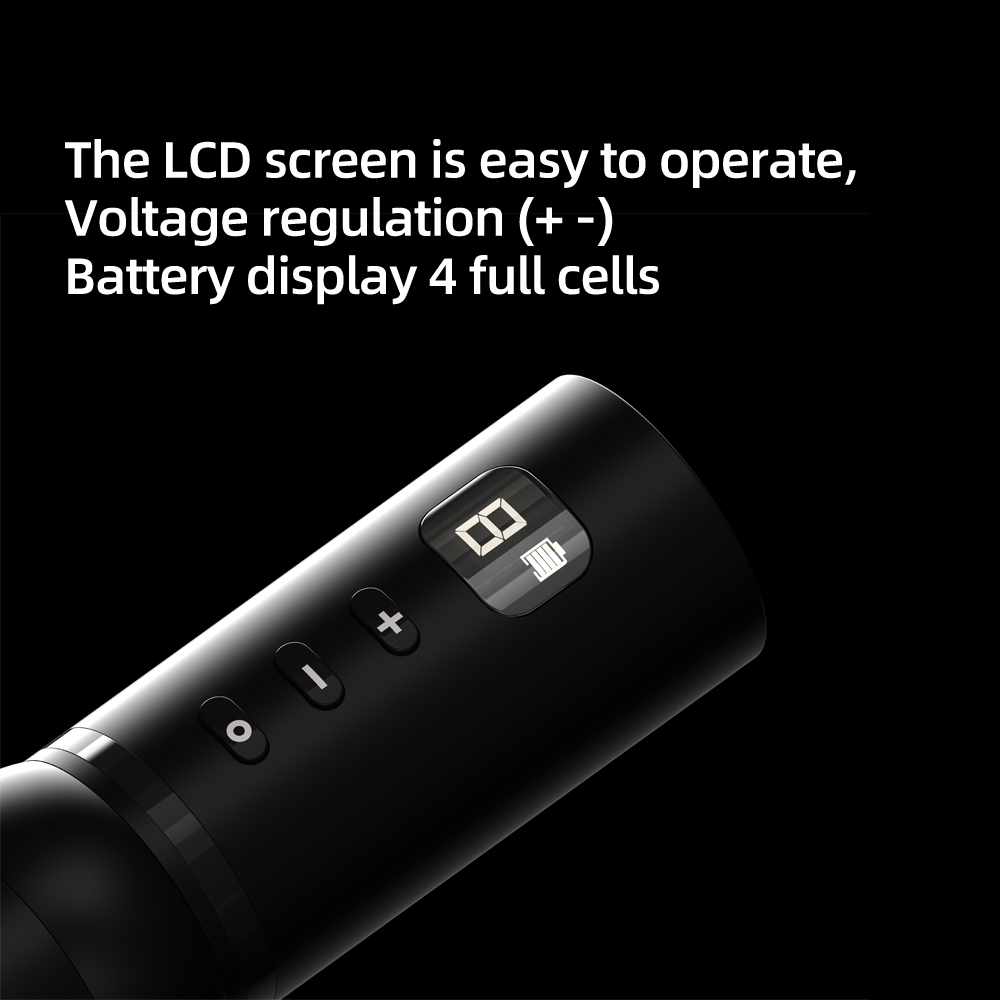

4. LCD display content: output voltage range + battery usage
5. Lithium battery capacity: 16500 mAh capacity, built-in 3pcs 550 mAh lithium batteries;
Instructions for use:
The device is a tattoo power supply, with input port, output port, built-in lithium battery, external switch button, voltage adjustment button, LCD screen, and specific functions are as follows:
1. Power on: press and hold the middle O key for 5 seconds to power on, and then press and hold for 5 seconds to power off;
2. Pause: during normal work, press the O key for a short time to pause the work, and then press to resume the work;
3. Adjust the voltage: pushing the “+” or “-” key to adjust the gear, corresponding to 1-8 gears respectively representing 5-12V;
4. Battery display: It is displayed on the LCD screen, it is full of 4 cells, and it needs to be charged when there is 1 cell remaining
Power parameters:
1. Input: The charging port is powered by a USB data cable.
The built-in battery is 3 pcs, 550mA / block, 3.7V battery, and the output current is fixed at 1A;
2. Output: Voltage range: (1-8 range corresponds to 5-12V) pushing “+” or “ -” button to switch the voltage range, 5V is the lowest voltage, and 1 level corresponds 5V, 2nd gear corresponds to 6V, and so on 8th gear corresponds to 12V;
3. Power storage: fast charge through the matching fast charge USB data cable. Normally, it can be fully charged in 1.5-2 hours. It is fully charged with 4 grids. It can be used for about 5-6 hours when the 8V is turned on. The voltage is stable. The last battery charge needs to be recharged to ensure the use time.
